KA24DET Silhouette Type-X Turbo Manifold

from $1,700.00

EMAIL JUSTIN@FULLEFFECTFAB.COM TO PLACE ORDER

Fabricated and welded by aerospace D17.1 Class A certified welder.

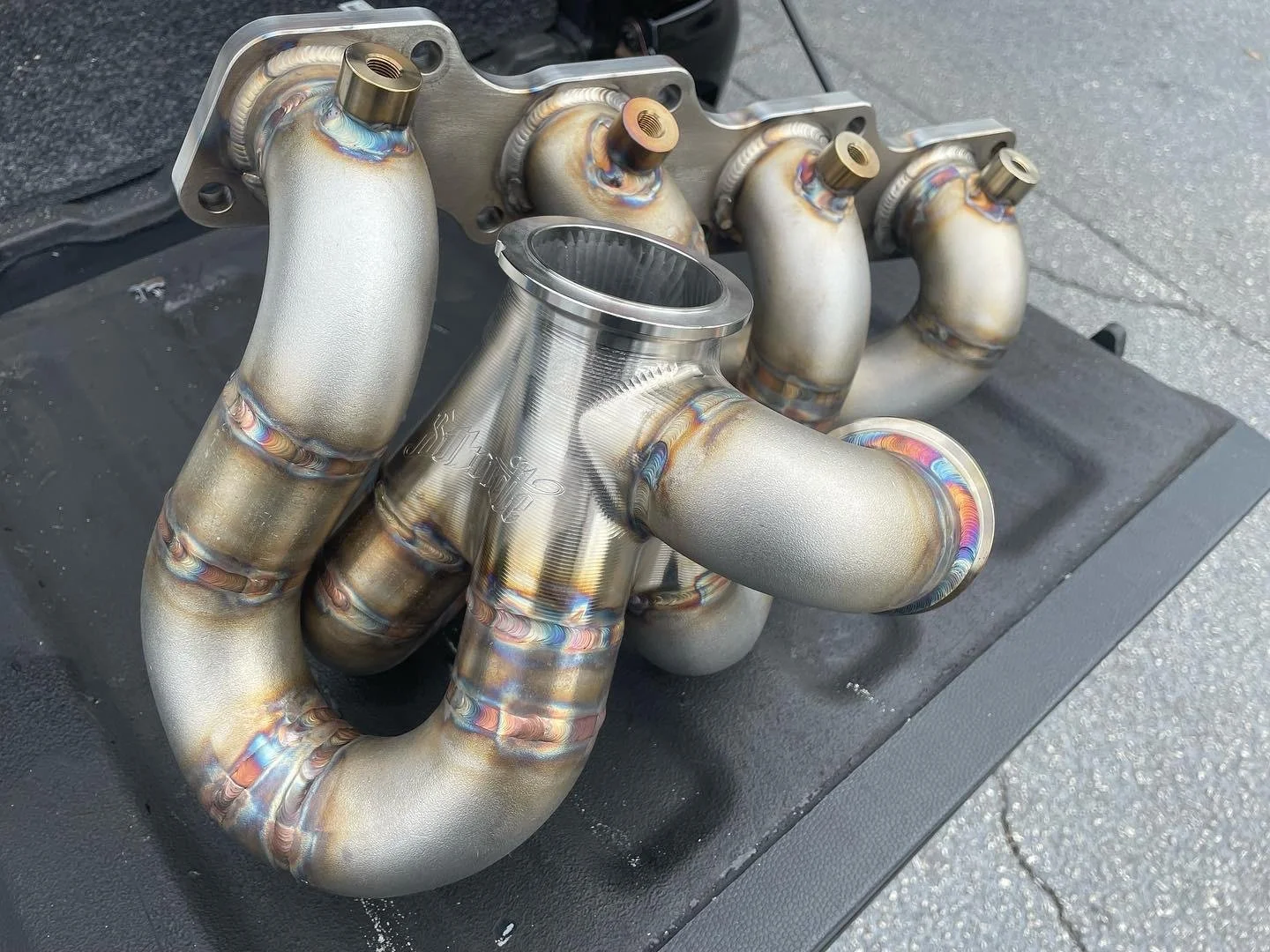

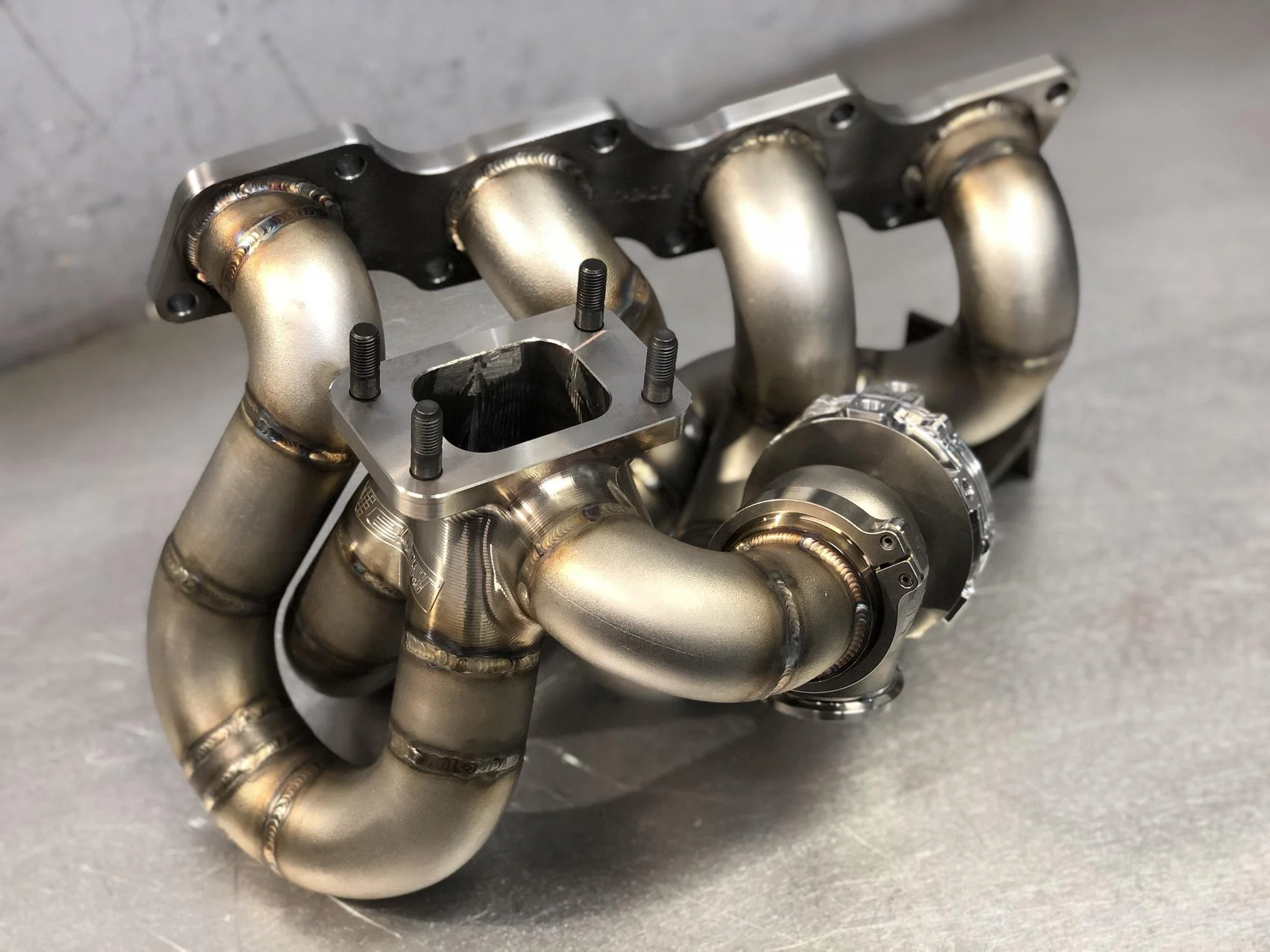

For optimal responsiveness and clearance from brake booster setups, and ample room for down pipe routing, this top mount forward facing turbo manifold places the turbo between runners 1 and 2 and features an external waste gate port. PS and AC friendly.  This is the only manifold on the market of this quality with this turbo position.

Features a 304 Schedule 40 CNC billet merge collector in what ever turbo flange application needed, such as Vband, t3, t4, etc.

Fabricated with 1.5" runners made from schedule 10 321 stainless tubing which with stands greater heat and abuse over time compared to 304.

The manifold mounting flange is cnc machined out of 1/2" cold rolled 1018 steel and is stepped to accept schedule 10 pipe and transition smoothly into the head ports.

This manifold recently dyno'd at 450hp and peak tq of 522 at 3700 rpms! Engine setup was as follows:

  • Silhouette Power Type X turbo manifold

  • 26psi on a Garrett T3 GTX3071R

  • id1050x injectors

  • Tial 44mm wastegate

  • Weisco pistons and Eagle rods

  • 264 cams

  • e85 fuel

  • lsx coilpacks

  • haltech engine management

    Dyno Video

 WE CAN BUILD TO WHATEVER CONFIGURATION YOU DESIRE, IF YOUR OPTIONS ARE NOT LISTED, JUST EMAIL US AND ORDER DIRECT WITH YOUR CUSTOM SPECS.

ALL MANIFOLDS ARE BUILT TO ORDER. ALLOW 3-4 WEEKS FOR COMPLETION.

SHIPPING IS DETERMINED ONCE FABRICATION IS COMPLETE.
